ASPack UnPack

ASPackのUnpackは大きく２つの方法に分かれる。（他にもあるかもしれない。）

１。retn 0c 命令を見つけてその下にあるPUSH ~~~部分のアドレスがOEPになる。

２。pushad をtraceした後全てのRegisterがStackに入った後、ESPの値にHardware BreakPointをセットしてtraceする。

Python Challenge] Level1. maketrans()

str.maketrans(intab, outtab]);

Parameters

• intab − This is the string having actual characters.

• outtab − This is the string having corresponding mapping character.

example code :

intab = "aeiou"
outtab = "12345"
trantab = str.maketrans(intab, outtab)

str = "this is string example....wow!!!"
print (str.translate(trantab))

Result

When we run above program, it produces the following result −

th3s 3s str3ng 2x1mpl2....w4w!!!

by.

www.tutorialspoint.com

VB function description for reversing

偶然見つけたサイト。

VB Fileを分析する時結構助かる。

Note：VB function description for reversing | hvoid code

PE FORMAT] -5- Section Header

参考：

docs.microsoft.com

PE FILEを多数のSECTION構造にした時得られる利点→安定性

typedef struct _IMAGE_SECTION_HEADER {
BYTE Name[IMAGE_SIZEOF_SHORT_NAME];
union {
DWORD PhysicalAddress;
DWORD VirtualSize;
} Misc;
DWORD VirtualAddress;
DWORD SizeOfRawData;
DWORD PointerToRawData;
DWORD PointerToRelocations;
DWORD PointerToLinenumbers;
WORD NumberOfRelocations;
WORD NumberOfLinenumbers;
DWORD Characteristics;
} IMAGE_SECTION_HEADER, *PIMAGE_SECTION_HEADER;

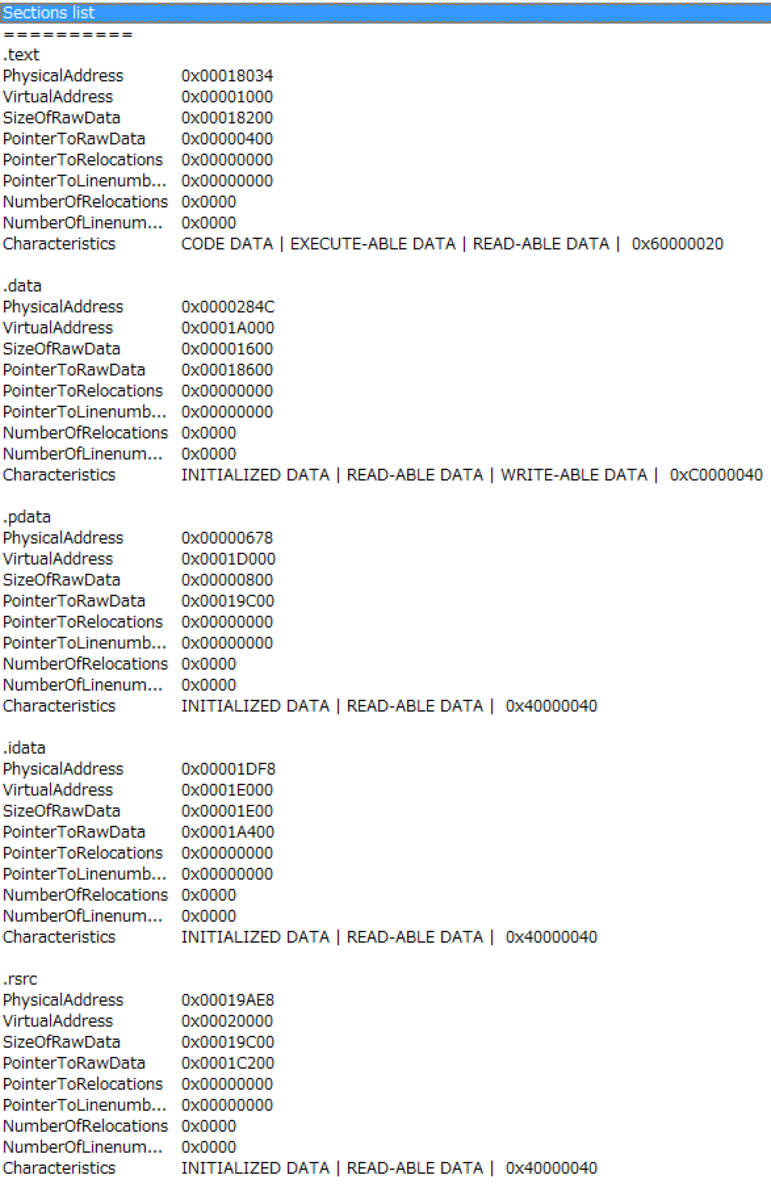

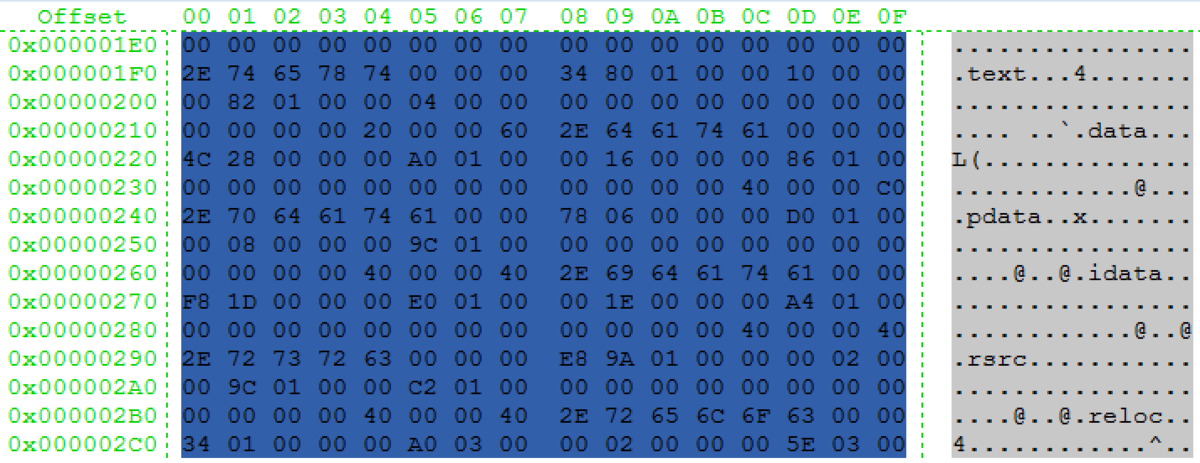

IMAGE_SECTION_HEADER PE View (notepad.exe)

SECTION HEADER

<member>

Name

An 8-byte, null-padded UTF-8 string. There is no terminating null character if the string is exactly eight characters long. For longer names, this member contains a forward slash (/) followed by an ASCII representation of a decimal number that is an offset into the string table. Executable images do not use a string table and do not support section names longer than eight characters.

Misc.VirtualSize

The total size of the section when loaded into memory, in bytes. If this value is greater than the SizeOfRawData member, the section is filled with zeroes. This field is valid only for executable images and should be set to 0 for object files.

VirtualAddress

The address of the first byte of the section when loaded into memory, relative to the image base. For object files, this is the address of the first byte before relocation is applied.

SizeOfRawData

The size of the initialized data on disk, in bytes. This value must be a multiple of the FileAlignment member of the IMAGE_OPTIONAL_HEADER structure. If this value is less than the VirtualSize member, the remainder of the section is filled with zeroes. If the section contains only uninitialized data, the member is zero.

PointerToRawData

A file pointer to the first page within the COFF file. This value must be a multiple of the FileAlignment member of the IMAGE_OPTIONAL_HEADER structure. If a section contains only uninitialized data, set this member is zero.

Characteristics

The characteristics of the image. The following values are defined.

(sectionの属性)

Flag	Meaning
0x00000000	Reserved.
0x00000001	Reserved.
0x00000002	Reserved.
0x00000004	Reserved.
IMAGE_SCN_TYPE_NO_PAD 0x00000008	The section should not be padded to the next boundary. This flag is obsolete and is replaced by IMAGE_SCN_ALIGN_1BYTES.
0x00000010	Reserved.
IMAGE_SCN_CNT_CODE 0x00000020	The section contains executable code.
IMAGE_SCN_CNT_INITIALIZED_DATA 0x00000040	The section contains initialized data.
IMAGE_SCN_CNT_UNINITIALIZED_DATA 0x00000080	The section contains uninitialized data.
IMAGE_SCN_LNK_OTHER 0x00000100	Reserved.
IMAGE_SCN_LNK_INFO 0x00000200	The section contains comments or other information. This is valid only for object files.
0x00000400	Reserved.
IMAGE_SCN_LNK_REMOVE 0x00000800	The section will not become part of the image. This is valid only for object files.
IMAGE_SCN_LNK_COMDAT 0x00001000	The section contains COMDAT data. This is valid only for object files.
0x00002000	Reserved.
IMAGE_SCN_NO_DEFER_SPEC_EXC 0x00004000	Reset speculative exceptions handling bits in the TLB entries for this section.
IMAGE_SCN_GPREL 0x00008000	The section contains data referenced through the global pointer.
0x00010000	Reserved.
IMAGE_SCN_MEM_PURGEABLE 0x00020000	Reserved.
IMAGE_SCN_MEM_LOCKED 0x00040000	Reserved.
IMAGE_SCN_MEM_PRELOAD 0x00080000	Reserved.
IMAGE_SCN_ALIGN_1BYTES 0x00100000	Align data on a 1-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_2BYTES 0x00200000	Align data on a 2-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_4BYTES 0x00300000	Align data on a 4-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_8BYTES 0x00400000	Align data on a 8-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_16BYTES 0x00500000	Align data on a 16-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_32BYTES 0x00600000	Align data on a 32-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_64BYTES 0x00700000	Align data on a 64-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_128BYTES 0x00800000	Align data on a 128-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_256BYTES 0x00900000	Align data on a 256-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_512BYTES 0x00A00000	Align data on a 512-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_1024BYTES 0x00B00000	Align data on a 1024-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_2048BYTES 0x00C00000	Align data on a 2048-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_4096BYTES 0x00D00000	Align data on a 4096-byte boundary. This is valid only for object files.
IMAGE_SCN_ALIGN_8192BYTES 0x00E00000	Align data on a 8192-byte boundary. This is valid only for object files.
IMAGE_SCN_LNK_NRELOC_OVFL 0x01000000	The section contains extended relocations. The count of relocations for the section exceeds the 16 bits that is reserved for it in the section header. If the NumberOfRelocations field in the section header is 0xffff, the actual relocation count is stored in the VirtualAddress field of the first relocation. It is an error if IMAGE_SCN_LNK_NRELOC_OVFL is set and there are fewer than 0xffff relocations in the section.
IMAGE_SCN_MEM_DISCARDABLE 0x02000000	The section can be discarded as needed.
IMAGE_SCN_MEM_NOT_CACHED 0x04000000	The section cannot be cached.
IMAGE_SCN_MEM_NOT_PAGED 0x08000000	The section cannot be paged.
IMAGE_SCN_MEM_SHARED 0x10000000	The section can be shared in memory.
IMAGE_SCN_MEM_EXECUTE 0x20000000	The section can be executed as code.
IMAGE_SCN_MEM_READ 0x40000000	The section can be read.
IMAGE_SCN_MEM_WRITE 0x80000000	The section can be written to.

PE FORMAT] -4- NT Header (DOS Sign, IMAGE_FILE_HEADER, IMAGE_OPTIONAL_HEADER)

参考：

docs.microsoft.com

NT Headerの構造体はIMAGE_NT_HEADERS.

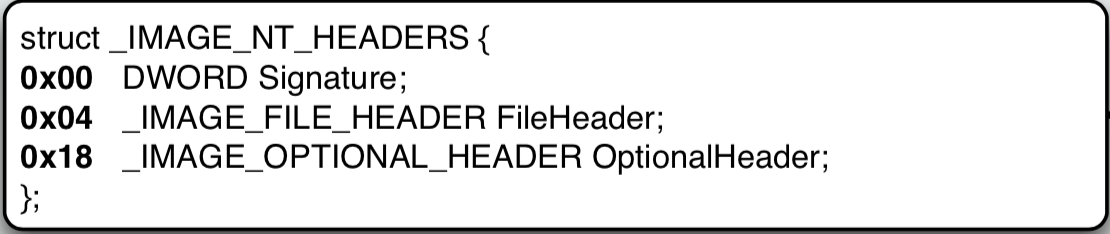

typedef struct _IMAGE_NT_HEADERS {

 DWORD Signature; // PE sign (50 45 00 00)

 IMAGE_FILE_HEADER FileHeader;

 IMAGE_OPTIONAL_HEADER32 OptionalHeader;

} IMAGE_NT_HEADERS32, *PIMAGE_NT_HEADERS32;

 size : F8

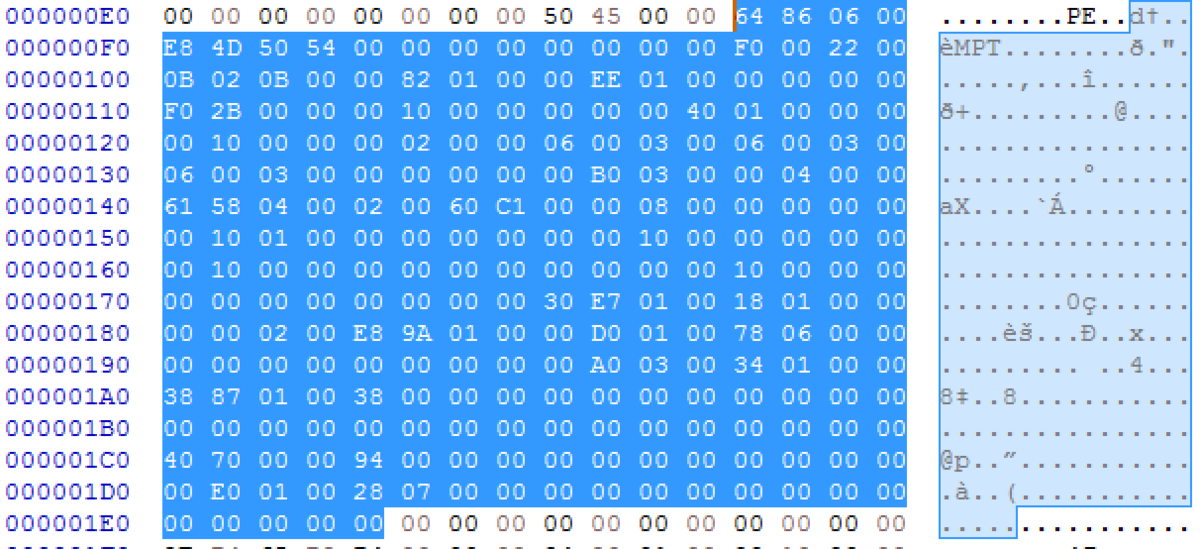

IMAGE_NT_HEADERS (Notepad.exe)

<member>

 [DWORD Signature]

PE sign

 [IMAGE_FILE_HEADER FileHeader;]

typedef struct _IMAGE_FILE_HEADER {
WORD Machine;
WORD NumberOfSections;
DWORD TimeDateStamp;
DWORD PointerToSymbolTable;
DWORD NumberOfSymbols;
WORD SizeOfOptionalHeader;
WORD Characteristics;
} IMAGE_FILE_HEADER, *PIMAGE_FILE_HEADER;

IMAGE_FILE_HEADER (notepad.exe)

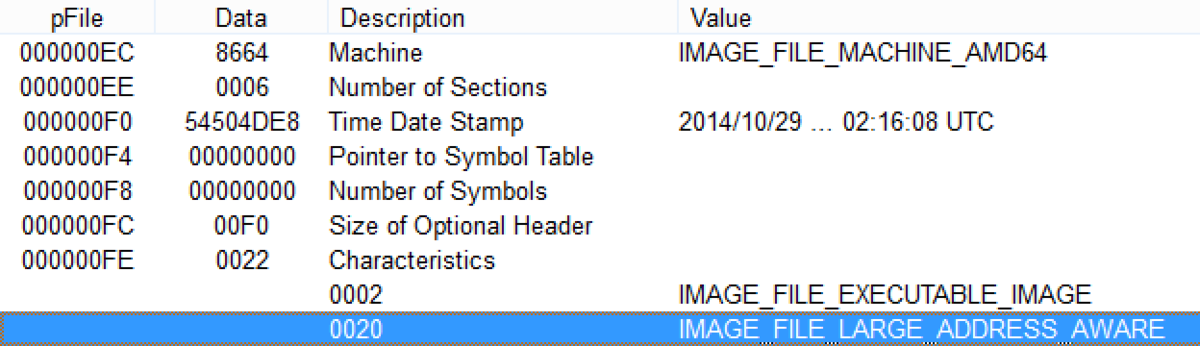

IMAGE_FILE_HEADER PE View (notepad.exe)

Machine

The architecture type of the computer. An image file can only be run on the specified computer or a system that emulates the specified computer. This member can be one of the following values.

Value	Meaning
IMAGE_FILE_MACHINE_I386 0x014c	x86
IMAGE_FILE_MACHINE_IA64 0x0200	Intel Itanium
IMAGE_FILE_MACHINE_AMD64 0x8664	x64

NumberOfSections

The number of sections. This indicates the size of the section table, which immediately follows the headers. Note that the Windows loader limits the number of sections to 96.

SizeOfOptionalHeader

The size of the optional header, in bytes. This value should be 0 for object files.

Characteristics

The characteristics of the image. This member can be one or more of the following values.

Value	Meaning
IMAGE_FILE_RELOCS_STRIPPED 0x0001	Relocation information was stripped from the file. The file must be loaded at its preferred base address. If the base address is not available, the loader reports an error.
IMAGE_FILE_EXECUTABLE_IMAGE 0x0002	The file is executable (there are no unresolved external references).
IMAGE_FILE_LINE_NUMS_STRIPPED 0x0004	COFF line numbers were stripped from the file.
IMAGE_FILE_LOCAL_SYMS_STRIPPED 0x0008	COFF symbol table entries were stripped from file.
IMAGE_FILE_AGGRESIVE_WS_TRIM 0x0010	Aggressively trim the working set. This value is obsolete.
IMAGE_FILE_LARGE_ADDRESS_AWARE 0x0020	The application can handle addresses larger than 2 GB.
IMAGE_FILE_BYTES_REVERSED_LO 0x0080	The bytes of the word are reversed. This flag is obsolete.
IMAGE_FILE_32BIT_MACHINE 0x0100	The computer supports 32-bit words.
IMAGE_FILE_DEBUG_STRIPPED 0x0200	Debugging information was removed and stored separately in another file.
IMAGE_FILE_REMOVABLE_RUN_FROM_SWAP 0x0400	If the image is on removable media, copy it to and run it from the swap file.
IMAGE_FILE_NET_RUN_FROM_SWAP 0x0800	If the image is on the network, copy it to and run it from the swap file.
IMAGE_FILE_SYSTEM 0x1000	The image is a system file.
IMAGE_FILE_DLL 0x2000	The image is a DLL file. While it is an executable file, it cannot be run directly.
IMAGE_FILE_UP_SYSTEM_ONLY 0x4000	The file should be run only on a uniprocessor computer.
IMAGE_FILE_BYTES_REVERSED_HI 0x8000	The bytes of the word are reversed. This flag is obsolete.





[IMAGE_OPTIONAL_HEADER32 OptionalHeader;]



typedef struct _IMAGE_OPTIONAL_HEADER {
WORD Magic;
BYTE MajorLinkerVersion;
BYTE MinorLinkerVersion;
DWORD SizeOfCode;
DWORD SizeOfInitializedData;
DWORD SizeOfUninitializedData;
DWORD AddressOfEntryPoint;
DWORD BaseOfCode;
DWORD BaseOfData;
DWORD ImageBase;
DWORD SectionAlignment;
DWORD FileAlignment;
WORD MajorOperatingSystemVersion;
WORD MinorOperatingSystemVersion;
WORD MajorImageVersion;
WORD MinorImageVersion;
WORD MajorSubsystemVersion;
WORD MinorSubsystemVersion;
DWORD Win32VersionValue;
DWORD SizeOfImage;
DWORD SizeOfHeaders;
DWORD CheckSum;
WORD Subsystem;
WORD DllCharacteristics;
DWORD SizeOfStackReserve;
DWORD SizeOfStackCommit;
DWORD SizeOfHeapReserve;
DWORD SizeOfHeapCommit;
DWORD LoaderFlags;
DWORD NumberOfRvaAndSizes;
IMAGE_DATA_DIRECTORY DataDirectory[IMAGE_NUMBEROF_DIRECTORY_ENTRIES];
} IMAGE_OPTIONAL_HEADER32, *PIMAGE_OPTIONAL_HEADER32;

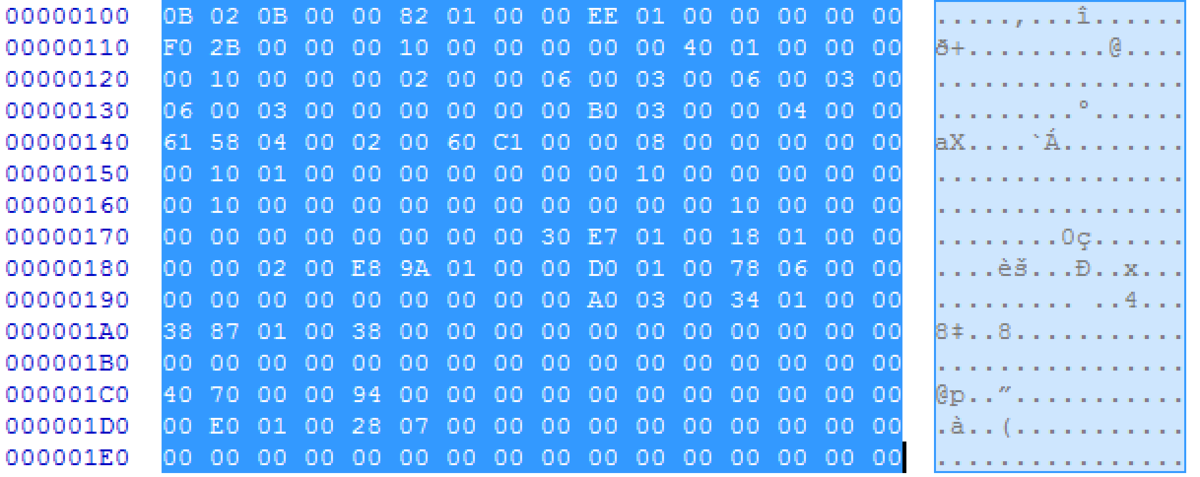

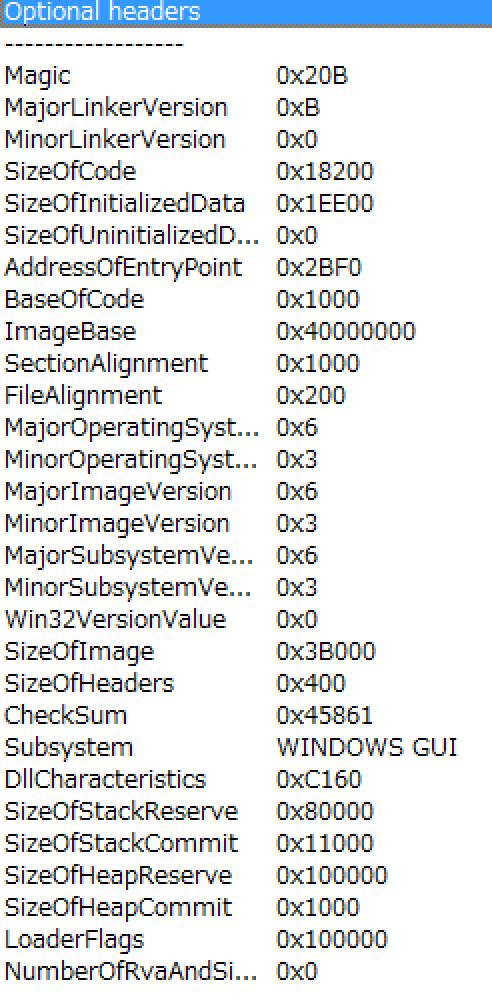

IMAGE_OPTIONAL_HEADER PE View (notepad.exe)

Magic

The state of the image file. This member can be one of the following values.

Value	Meaning
IMAGE_NT_OPTIONAL_HDR_MAGIC	The file is an executable image. This value is defined as IMAGE_NT_OPTIONAL_HDR32_MAGIC in a 32-bit application and as IMAGE_NT_OPTIONAL_HDR64_MAGIC in a 64-bit application.
IMAGE_NT_OPTIONAL_HDR32_MAGIC 0x10b	The file is an executable image.
IMAGE_NT_OPTIONAL_HDR64_MAGIC 0x20b	The file is an executable image.
IMAGE_ROM_OPTIONAL_HDR_MAGIC 0x107	The file is a ROM image.





AddressOfEntryPoint

A pointer to the entry point function, relative to the image base address. For executable files, this is the starting address. For device drivers, this is the address of the initialization function. The entry point function is optional for DLLs. When no entry point is present, this member is zero.

(Entry PointのRVA値を持つ)

ImageBase

The preferred address of the first byte of the image when it is loaded in memory. This value is a multiple of 64K bytes. The default value for DLLs is 0x10000000. The default value for applications is 0x00400000, except on Windows CE where it is 0x00010000.

(PE FILEがロードされるスタート地点)

SectionAlignment

The alignment of sections loaded in memory, in bytes. This value must be greater than or equal to the FileAlignment member. The default value is the page size for the system.

(MEMORYでSECTIONの最小単位)

SizeOfImage

The size of the image, in bytes, including all headers. Must be a multiple ofSectionAlignment.

SizeOfHeaders

The combined size of the following items, rounded to a multiple of the value specified in the FileAlignment member.

• e_lfanew member of IMAGE_DOS_HEADER
• 4 byte signature
• size of IMAGE_FILE_HEADER
• size of optional header
• size of all section headers



Subsystem

The subsystem required to run this image. The following values are defined.

Value	Meaning
IMAGE_SUBSYSTEM_UNKNOWN 0	Unknown subsystem.
IMAGE_SUBSYSTEM_NATIVE 1	No subsystem required (device drivers and native system processes).
IMAGE_SUBSYSTEM_WINDOWS_GUI 2	Windows graphical user interface (GUI) subsystem.
IMAGE_SUBSYSTEM_WINDOWS_CUI 3	Windows character-mode user interface (CUI) subsystem.
IMAGE_SUBSYSTEM_OS2_CUI 5	OS/2 CUI subsystem.
IMAGE_SUBSYSTEM_POSIX_CUI 7	POSIX CUI subsystem.
IMAGE_SUBSYSTEM_WINDOWS_CE_GUI 9	Windows CE system.
IMAGE_SUBSYSTEM_EFI_APPLICATION 10	Extensible Firmware Interface (EFI) application.
IMAGE_SUBSYSTEM_EFI_BOOT_SERVICE_DRIVER 11	EFI driver with boot services.
IMAGE_SUBSYSTEM_EFI_RUNTIME_DRIVER 12	EFI driver with run-time services.
IMAGE_SUBSYSTEM_EFI_ROM 13	EFI ROM image.
IMAGE_SUBSYSTEM_XBOX 14	Xbox system.
IMAGE_SUBSYSTEM_WINDOWS_BOOT_APPLICATION 16	Boot application.



NumberOfRvaAndSizes

The number of directory entries in the remainder of the optional header. Each entry describes a location and size.

DataDirectory

The following is a list of the data directories. Offsets are relative to the beginning of the optional header.

Offset (PE/PE32+)	Description
96/112	Export table address and size
104/120	Import table address and size
112/128	Resource table address and size
120/136	Exception table address and size
128/144	Certificate table address and size
136/152	Base relocation table address and size
144/160	Debugging information starting address and size
152/168	Architecture-specific data address and size
160/176	Global pointer register relative virtual address
168/184	Thread local storage (TLS) table address and size
176/192	Load configuration table address and size
184/200	Bound import table address and size
192/208	Import address table address and size
200/216	Delay import descriptor address and size
208/224	The CLR header address and size
216/232	Reserved





IMAGE_OPTIONAL_HEADER PE View (notepad.exe)

PE FORMAT] -3- DOS Stub

DOS Headerの下にはDOS Stubが存在する。

DOS StubはCompileするときにoptionで入れるかどうかが選択できる。

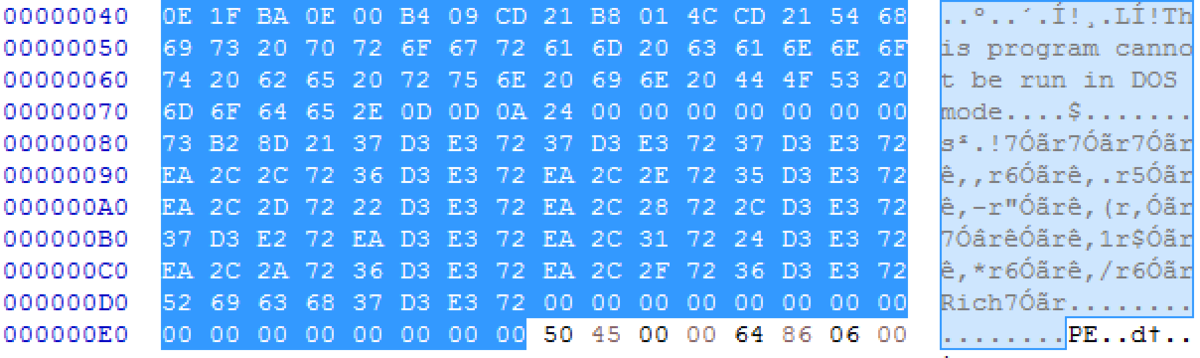

notepad.exeのDOS Stub

もしプログラムがDOS環境で実行された時、This program cannot be run in DOS modeを出力してそのまま終了させる部分である。

PE FORMAT] -2- DOS MZ HEADER

PE HEADERは最初にDOS EXE Headerを拡張させたIMAGE_DOS_HEADER構造体が存在。

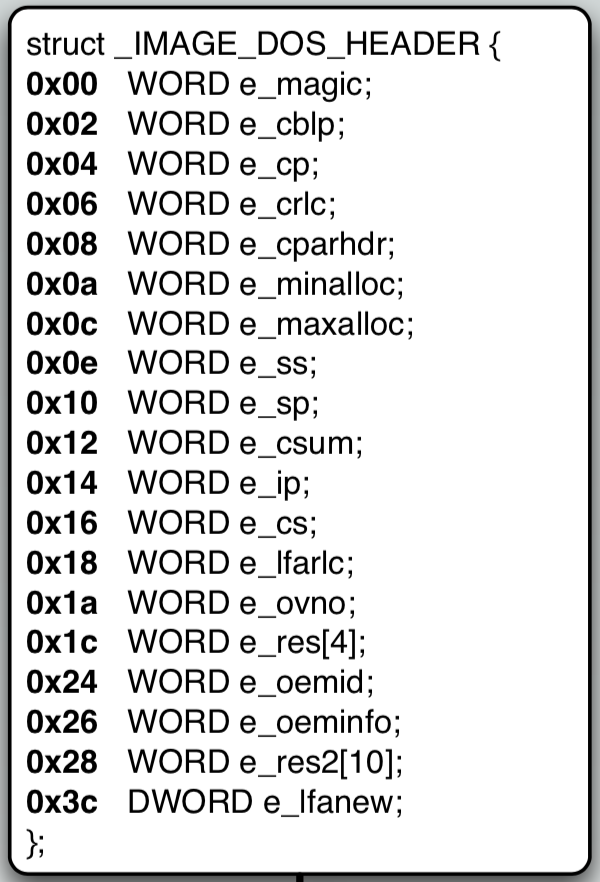

typedef struct _IMAGE_DOS_HEADER {

 WORD   e_magic;

.

.

.

 WORD   e_lfanew;

} IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

*structure size: 40

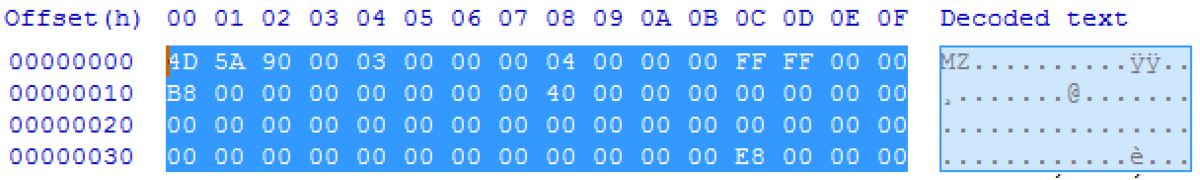

IMAGE_DOS_HEADER (notepad.exe)

<必見member>

e_magic : DOS signature (4D5A -> "MZ")

notepad.exe

e_lfanew : IMAGE_NT_HEADERのアドレス (offset: 00 00 00 E8 ;LittleEndian)

notepad.exe NT_HEADER
